This topic explains how to connect C/C++test to your source control repository.

Sections include:

About C/C++test’s Source Control Support

Any source control system that plugs into your C/C++test environment can be used to manage your source and test files.

If your team is using a one of the specified supported source control system listed below and performs necessary configuration as described later in this topic, C/C++test can:

C/C++test ships with support for the following source control systems:

BrandTested version
Git1.7, 1.8, 1.9, 2.x
Microsoft Team Foundation Server

2012, 2015, 2017, 2018, 2019

Perforce 2006.2, 2015
Subversion (SVN)1.2, 1.3, 1.4, 1.5, 1.6, 1.7, 1.8, 1.9, 1.10, 1.11, 1.12, 1.13

You can use the source control API to integrate with other source control systems. See Adding a Custom Source Control Integration for details.

Deprecated Source Control Systems

Support for the following SCMs is deprecated:

See Support for Deprecated Source Control Systems for details.


  • Each Subclipse plugin version is compatible with specific Subversion versions. Ensure that your Subclipse plugin is compatible with a version of Subversion that Parasoft supports. For example, you should not install Subversion 1.3 and Subclipse plugin 1.2, which uses Subversion 1.4. Subclipse 1.4.x requires Subversion 1.5.0 version of JavaHL/SVNKit. Subclipse 1.4.5 already has subversion client adapter 1.5.2.
  • Due to changes introduced in Subversion 1.4, Subversion clients earlier than 1.4 cannot work with working copies produced by Subversion 1.4. If you are using Subclipse plugin 1.2 (which includes Subversion 1.4), you might receive the following error message:
    svn: This client is too old to work with working copy '.'; please get a newer Subversion client
    This means that Parasoft is using a command-line client that is version 1.3 or older. The solution is to update your command-line SVN client to version 1.4. The client version can be verified by executing svn --version

Some source controls (for example, Perforce) require users to mark (lock) sources before editing them. If you are using one of these source control systems and you prompt C/C++test to perform an operation that involves editing a "read-only" file in source control, it will first open a dialog asking you whether you want to make the file writable and lock it. Click OK, then provide your source control username and password in the next dialog that opens; this allows it to access the source control system and set the lock.

Enabling Source Control Support

To enable support for any of the supported source control systems:

  1. Make sure that the command line client for the given source control is on the system%PATH%/$PATH and is available when C/C++test is launched. For example, if you use Subversion, it is not sufficient (or even required) to install the Subclipse plugin to Eclipse (SVN Eclipse plugin).  Instead, you should have the plain command line svn.exe Subversion client.

  2. Choose Parasoft> Preferences to open the Preferences page.
  3. Select Parasoft> Scope and Authorship in the left pane of the Preferences page.
  4. Enable the Use source control (modification author) to compute scope option.

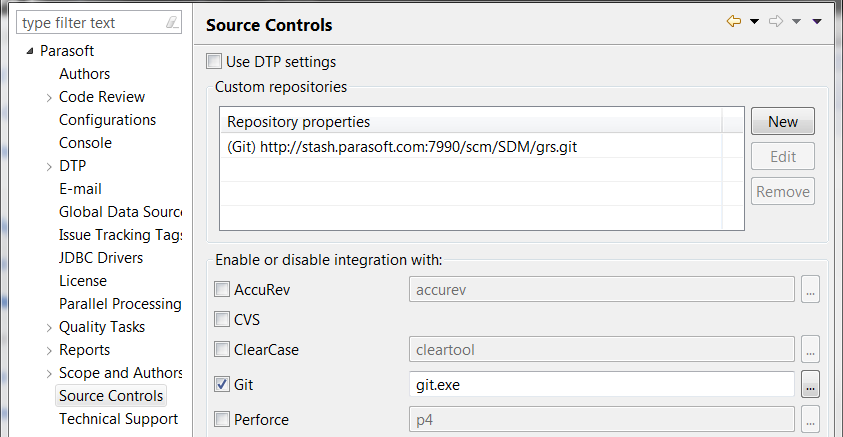

  5. Select Parasoft> Source Controls in the left pane of the Preferences page.
  6. If the appropriate repositories ARE already set (from the auto-configuration process described in C++test Configuration Overview), enter your user and password, and specify the path to your source control client executable (if it is not already on your system path).
    If the appropriate repositories ARE NOT already set (refer to the auto-configuration process described in C++test Configuration Overview), specify them as follows:
    1. Enable the source control system you want to use
    2. Specify the path to the SCM client executable. You do not need to specify the executable path if it is already on your system path.
    3. Click New in Repository properties field and enter the source control properties required for the selected type of source control system.
    4. Click OK to close the Source Control Description dialog.
  7. Apply your changes and click OK.

To test the integration:

  1. In the C/C++test environment,  open a project that is checked out from the repository.
  2. Open a file in the editor.
  3. Right-click the source code, and choose Parasoft> Show Author at Line. If the correct author is shown, the integration was successful.

To troubleshooting problems with source control integration, run  -consolelog -J-Dcom.parasoft.xtest.logging.config.jar.file=/com/parasoft/xtest/logging/log4j/config/logging.on.xml. This should result in detailed log information being printed to the console.

To include messages from the source control system that may contain fragments of user source code, use an additional flag: -Dscontrol.log=true

Git Configuration

The Git repository you connect to must allow anonymous pulls.

  1. Open a command prompt and clone your repository:
    git clone <repository>
  2. If cloning from a git URL, then the git push  URL must also be configured to automatically push test cases checked in with Git.
    git config remote.origin.pushurl [email protected]<your repository URL>
  3. Set git config  on the newly created repository user.name
    git config user.name "<your username>"
    This step can be skipped if a global git user.name is already set. The user.name must match the user's DTP user name.

When you are enabling source control support, specify the following repository properties in the Create Source Control Description dialog:

Perforce Configuration

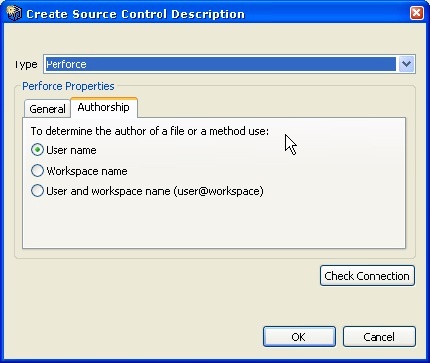

When you are enabling source control support, specify the following repository properties in the Create Source Control Description dialog:

By default, username is used to determine file/method authorship. However, some teams access Perforce with a shared user name and a unique workspace for each developer.

If you want to use workspace name  (or user name and workspace name) to determine  authorship, open the Authorship tab and modify the setting as needed.

Subversion Configuration

Parasoft’s Subversion support is based on the command line client 'svn'. To use Subversion with C/C++test, ensure that:

When you are enabling source control support, specify the following repository properties in the Create Source Control Description dialog:

Team Foundation Server Configuration

When you are enabling source control support, specify the following repository properties in the Create Source Control Description dialog:

By default, C/C++test uses the cached credentials for accessing TFS (this could be your user login or some previously logged in information). You can provide custom credentials if you want to use them instead of the cached ones.

Support for Deprecated Source Control Systems

AccuRev Configuration (deprecated)

When you are enabling source control support, specify the following repository properties in the Create Source Control Description dialog:

ClearCase Configuration (deprecated)

To use ClearCase with C/C++test:

When you are enabling source control support, specify the following repository properties in the Create Source Control Description dialog:

CVS Configuration (deprecated)

To use CVS with C/C++test, ensure that the .cvspass file is in one of the following locations:

When you are enabling source control support, specify the following repository properties in the Create Source Control Description dialog:

General tab

Custom SSH/CVS_RSH tab

Serena Dimensions Configuration (deprecated)

To use Serena Dimensions with C/C++test, Linux users should run C/C++test  in an environment prepared for using Serena programs, such as 'dmcli'

  • LD_LIBRARY_PATH should contain the path to <SERENA Install Dir>/libs.
  • DM_HOME should be specified.
When you are enabling source control support, specify the repository properties in the following tabs.

Properties tab

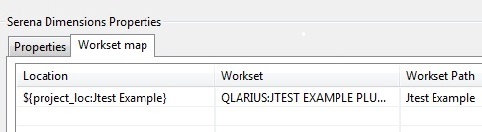

Workset Map tab

If the project has been downloaded/moved to a location other than default work area, use this tab to specify a mapping between the project (or stream) with the Serena repository and the local project.

If you are working in the default work area, you do not need to define mappings.



Enter an expression that maps workspace resources to Serena Dimension repository paths.

StarTeam Configuration (deprecated)

To use StarTeam with C/C++test ensure that:

For Visual Studio plugins, Parasoft StarTeam support is available for VS 2005 and VS 2008. When you are enabling source control support, specify the following repository properties:

Synergy Configuration (deprecated)

Synergy 7.0 introduces a new, faster way of working called Web mode. C/C++test supports both of the following Synergy/CM communication modes:

When you are enabling source control support, specify the following repository properties in the Create Source Control Description dialog:

Visual SourceSafe Configuration (deprecated)

When you are enabling source control support, specify the following repository properties in the Create Source Control Description dialog:

Specifying Source Control Definitions via localsettings

Source control definitions can be specified in localsettings (e.g. for sharing team-wide settings via  DTP or specifying options at the command line). See Configuring Localsettings for details.
