After executing the Multi-Language Pack, results are output in two ways:
- As local Parasoft HTML reports.
- Sent to DTP and presented in widgets, reports, and other visualizations
You can also configure the Multi-Language Pack to email reports to project team members (see Report Settings).
HTML Reports
The local HTML report (and XML data that feeds the report) are saved to the <INSTALL>/reports directory after execution. The following sections are included in the report by default.

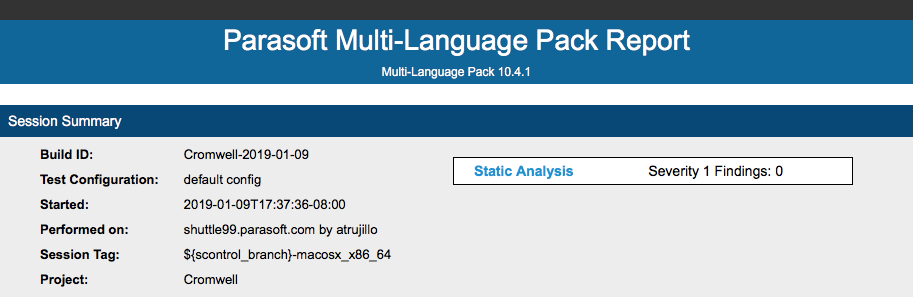

Header
Findings
The first part of the report covers the static analysis findings. A finding is a static analysis violation originally detected by the third-party static analysis tool (JSHint, Scalastyle, etc.) and processed by the Multi-Language Pack to include code authorship metadata.

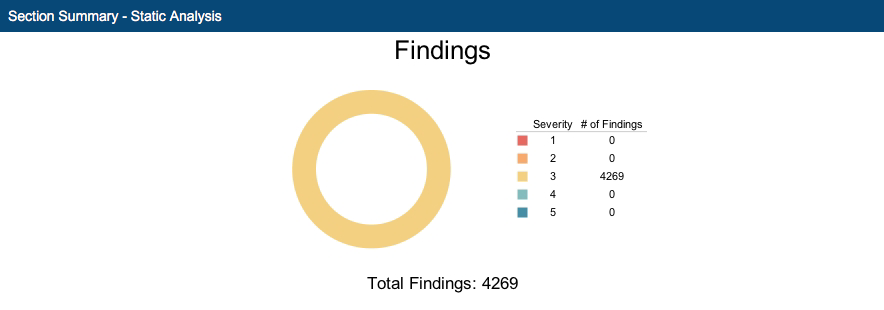

Findings are displayed in the report as a color-coded pie chart indicating different severity types. Different analysis tools have different systems for assigning severities to violations. In many instances, all violations may be assigned to single severity, such as Severity 3, by default. You can change the severities associated with specific code analysis rules to meet your development objectives. See Customizing Rule Details and Metadata for details.

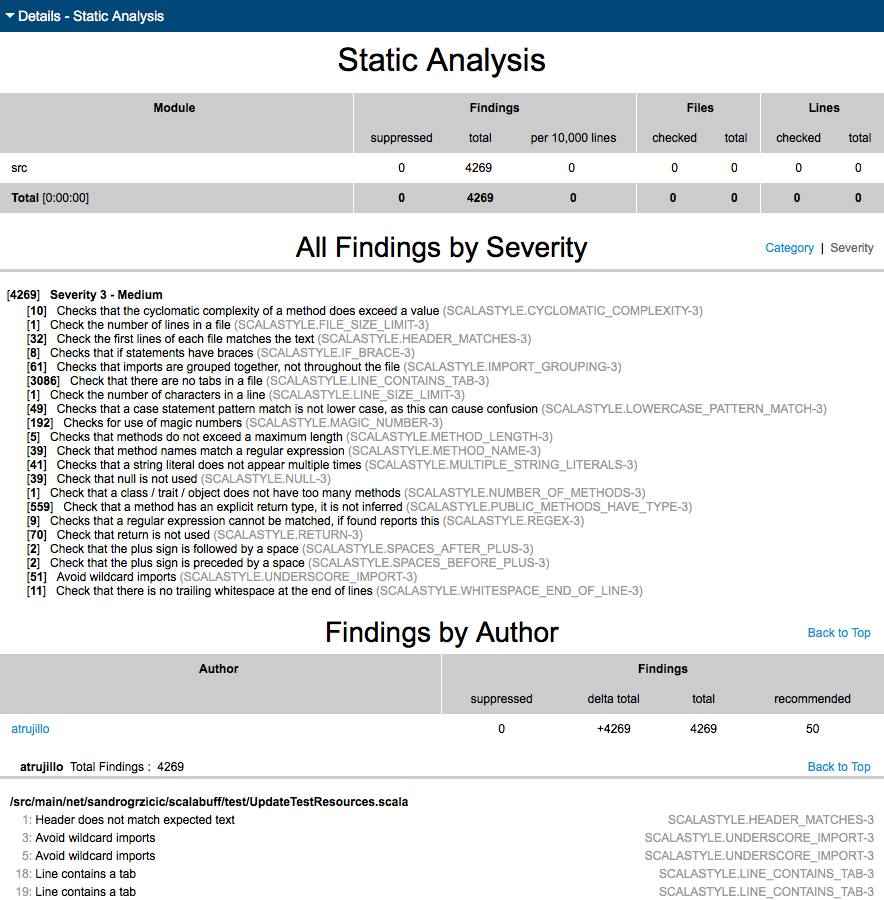

Static Analysis Details
This section presents findings from several perspectives, including findings by severity, author, and file.

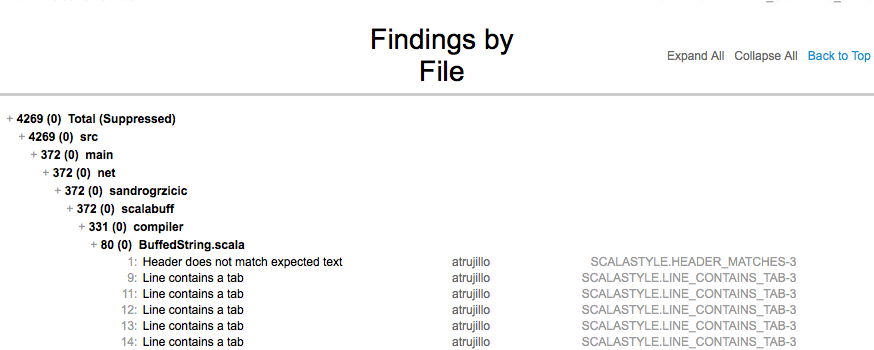

You can navigate the analyzed code to the reported findings in the Findings by File section. Each node begins with a value that indicates the total number of findings in the node. The value in brackets shows the number of suppressed rules in the node. You can click nodes marked with a plus sign (+) to expand them.

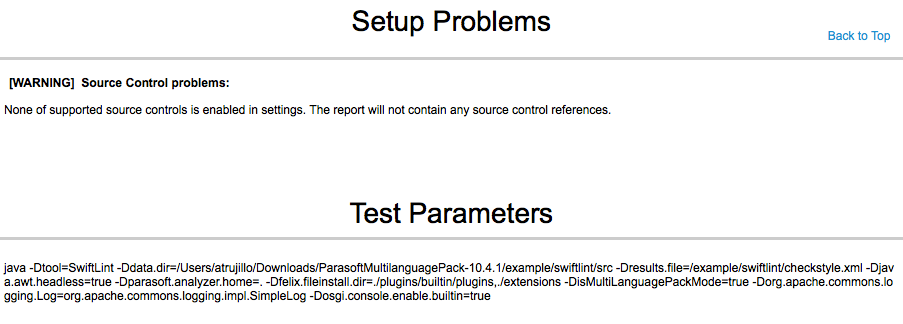

Setup and Test Parameters
The setup problems section reports errors that may have affected execution and/or data collection. The test parameters section outputs the full command used to run the Multi-Language Pack.
Viewing Results in DTP

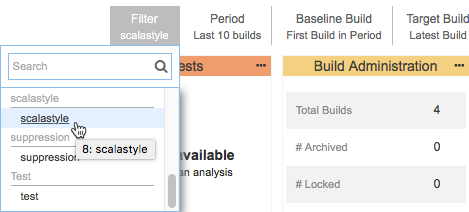

Open a dashboard in DTP and choose a filter associated with your project from the Filter drop-down menu. A filter named after the project is added to each project in DTP by default. If your DTP administrator has not set up filters, then your filter will be Project Name> Project Name. See dtp.project for information on connecting to your project.
You may also need to select the correct build ID form the Target Build drop-down menu. This will only be necessary if there are several build IDs associated with the project. Refer to DTP Concepts in the DTP documentation for background information about build IDs, filters, and other concepts associated with DTP.

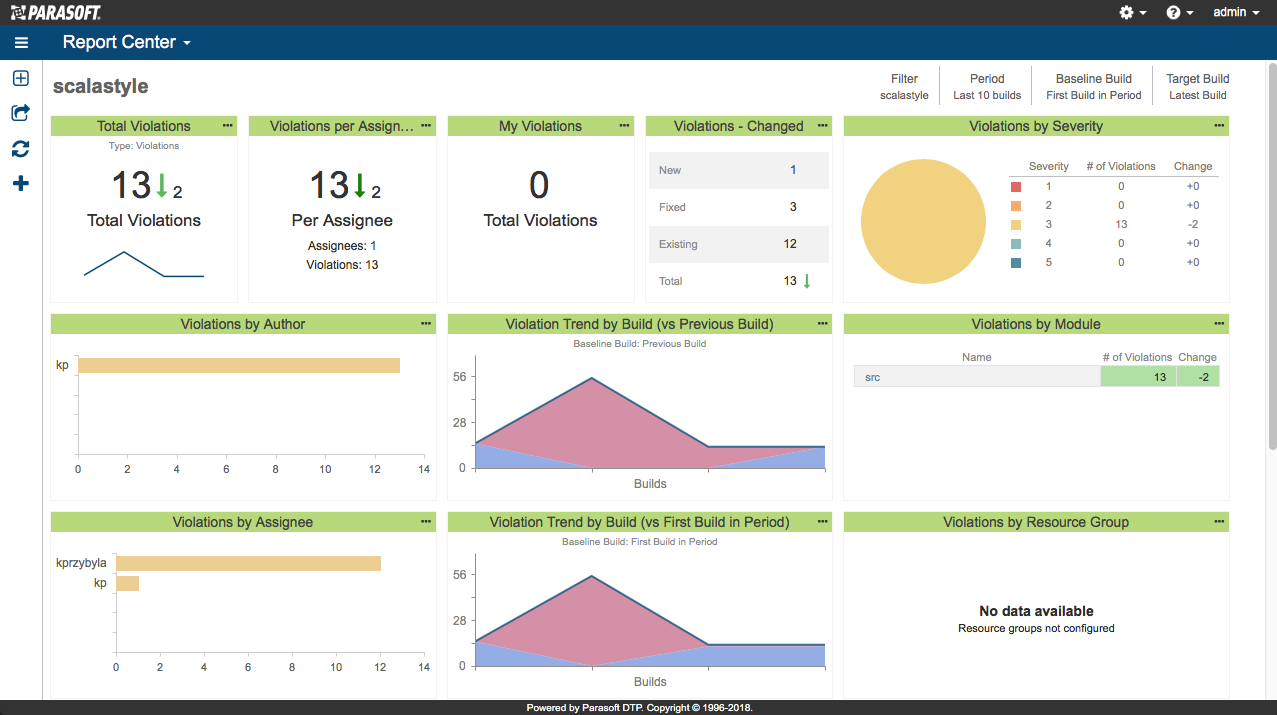

If your dashboard already has static analysis widgets configured to view data according to the dashboard settings, then you will see the results.

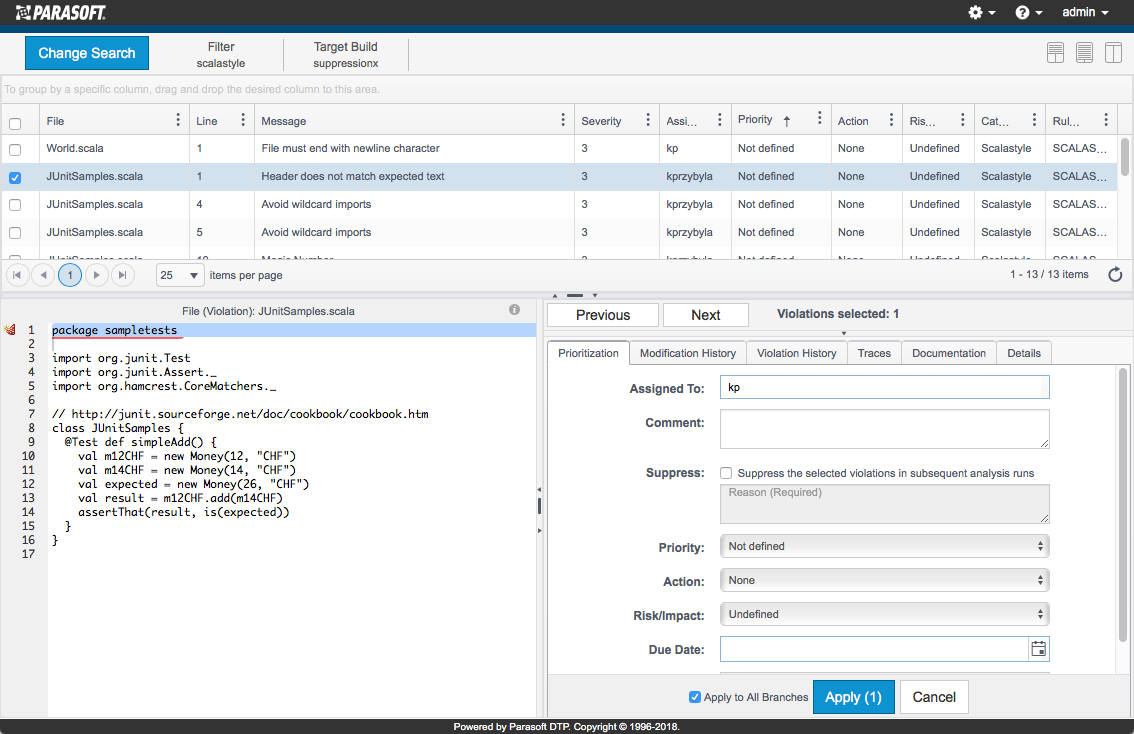

You can also click on widgets to open additional interfaces, such as the Violations Explorer to prioritize violations, assign them to team members for remediation, and more.
Refer to the DTP documentation on docs.parasoft.com for details on using the features in DTP.
