Overview
Only users with appropriate permissions can edit test configurations. See About Test Configuration Access.
Click on a test configuration in the sidebar to enable editing. Changes affect the test configuration files stored in DTP.
Click on a tab to access a group of related test configuration settings. For additional information about test configuration settings, mouse over an information icon ("i") next to a configuration setting.
Scope Tab
The Scope tab contains a set of filters that you can configure to define the parts of the code that the test configuration should cover. You must connect the code analysis and test execution tool to source control in order to collect scope information. See Configuring Parasoft Tool Settings for All Projects. Click Save to preserve any changes you make on this tab.
You can configure the following settings.

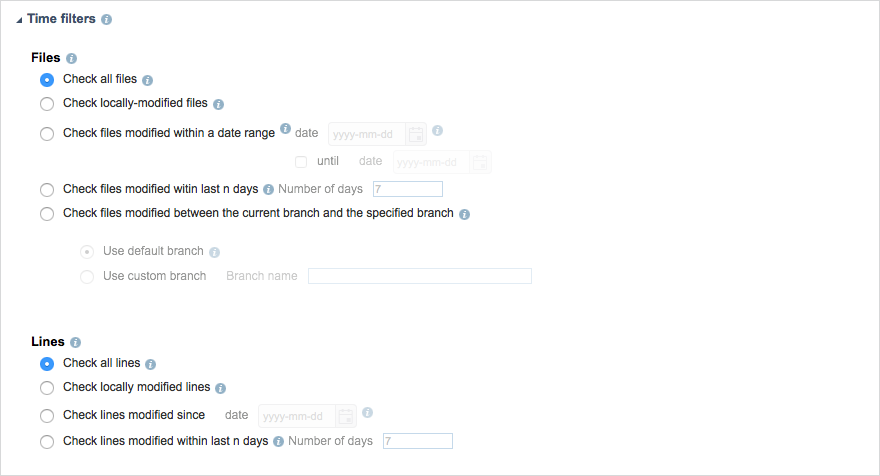

Time Filters
Expand the Time filters settings to set time-based filters at the file or line level. The time filters enable you to restrict the scope of analysis to a specific date range or period. If the scope.scontrol setting is set to true and the source control settings for the tool are configured, the modification time is set from the source control history. If scope.local is set to true, then the modification time is set form the file system of the machine running the tool.
You can configure the following settings:
File-Level Settings
| Check all files | Default. Enable this option to include all files in the scope of the analysis the user has access to. |
|---|---|
| Check locally-modified files | Enable this option to check only locally modified files. Files in the source control system will be excluded. The following setting must be configured in the code analysis and test execution tool for this option to take effect:
|
| Check files modified within a date range | Enable this option and specify a date range to include in the scope. Files that were modified or added within the specified range will be checked. |
| Check files modified witin last n days | Enable this option and specify the number of days to include in the scope. Files that were modified or added within the specified number of days will be checked. |
| Check files modified between the current branch and the specified branch | Enable this option to specify a range of branches to include in the scope. Files that were modified from the user's current branch to the specified branch will be checked. Files that did not change between branches are excluded. You can enable the following options:
|
Line-Level Settings
| Check all lines | Default. Enable this option to include all lines of code in the scope of the analysis the user has access to. |
|---|---|
| Check locally-modified lines | Enable this option to check only locally modified lines of code. Lines of code in the source control system will be excluded. The following setting must be configured in the code analysis and test execution tool for this option to take effect:
|
| Check lines modified since | Enable this option and specify a cut-off date to include in the scope. Lines of code that were modified or added within the specified range will be checked. |
| Check lines modified witin last n days | Enable this option and specify the number of days to include in the scope. Lines of code that were modified or added within the specified number of days will be checked. |

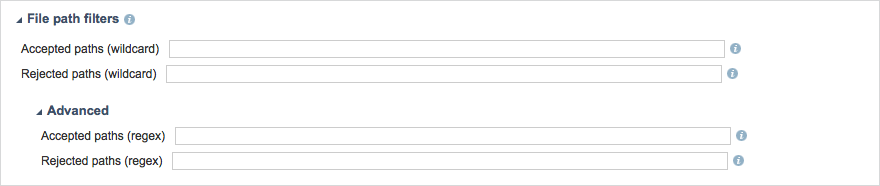

File Path Filters
Expand the File path filters section to specify file path patterns to include and/or exclude from analysis. Relative paths within a workspace/solution.
The following settings are available:
| Accepted paths (wildcard) | Specify a comma-separated list of files to include. Wildcards are supported (for example, *.cpp, *.java, *.cs). |
|---|---|
| Rejected paths (wildcard) | Specify a comma-separated list of files to exclude. Wildcards are supported (for example, *.cpp, *.java, *.cs). |
Expand the Advanced discloser triangle to use regular expressions to set the file path filters. The following settings are available:
| Accepted paths (regex) | Specify a regular expression. Files that match the pattern will be included in the analysis. |
|---|---|
| Rejected paths (regex) | Specify a regular expression. Files that match the pattern will be excluded in the analysis. |
File Content Filters
Expand the File content filters section to specify regular expressions that exclude specific types of files based on content, for example, auto-generated files.
File filtering takes priority over code block filtering
A potential conflict may occur if you use both filter types at the same time.

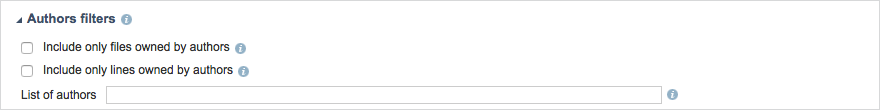

Author Filters
Expand the Author filters section to limit the scope of analysis to specific authors. If the scope.scontrol setting is set to true and the source control settings of the code analysis tool are configured, then file authorship is taken from the source control system. If the scope.xmlmap is set to true and the XML map settings are configured for the tool, then files authorship is taken from the map.
The following options are available:
| Include only files owned by authors | Enable this option to only include files owned by the authors specified in the "List of authors" field. |
|---|---|
| Include only lines owned by authors | Enable this option to only include lines of code owned by the authors specified in the "List of authors" field. |
| List of authors | Specify a comma-separated list of authors whose code should be analyzed. |
File Size Filters
Expand the File size filters section to limit the scope of analysis based on file size.
Code Block Options
Expand the Code block options section to define specific blocks of code to include or exclude from the analysis.
File filtering takes priority over code block filtering
A potential conflict may occur if you use both filter types at the same time.
| Include only lines in certain blocks | Enable this option to include only the code defined by the Starting and Ending marker fields in the analysis. |
|---|---|
| Starting marker | Specify a regular expression to mark the start of the code block that should be analyzed. |
| Ending marker | Specify a regular expression to mark the beginning of the code block that should be analyzed. |
| Skip files without these markers | Enable this option skip files that do not include patterns that match the Starting and Ending marker fields. |
Static Analysis Tab
Click the Static Analysis tab to enable/disable the static analysis rules the configuration uses. This page shows all the rules supported by the selected code analysis tool. Click Save to preserve any changes you make on this tab.
Finding Rules
There are several ways to find specific rules. You can use the search bar to find a specific rule or rule category. You can also use the menu to filter by category and browse for a rule. Enable Show Enabled Only to filter for active rules.
Enabling and Disabling Rules
Rules are grouped by category. Expand a category and enable the rule to use it in the test configuration.
Click Enable [number] of rule(s) or Disable [number] of rule(s) to quickly enable or disable all rules in the configuration.
Viewing Rule Documentation
Click on a rule to open the documentation panel.
You can also open the rule documentation in new browser tab.
Click on the documentation icon to open all documentation for the enabled rules in a new browser tab.
Parameterizing Rules
If the rule can be configured, parameters can be set in the rule options panel. Click on a rule and click the Rule Parameters tab to configure the rule. The options available are specific to each rule.
Associating Rule Maps
Choose a custom rule map to associate with the test configuration. See Rule Maps.
Metrics Tab
Click the Metrics tab to enable/disable the metrics collected and calculated during analysis. Click Save to preserve any changes you make on this tab.
You can perform the following actions:
- Enter a metric ID in the search field to locate a specific metric.
- Enable Show Enabled Only to filter by enabled metrics.
- Click Enable [n] metric(s) or Disable [n] metric(s) to enable or disable all metrics in the test configuration.
- Enable/disable individual metrics.
- Enable Report static analysis violation when outside of acceptable ranges to configure an upper and lower threshold for the metric. A flag icon will appear in the Enabled column if this option is enabled.
- Click on a metric and click the Metric Documentation tab to view the documentation.
Unit Tests Tab
Click the Unit Tests tab to access controls for unit test execution and coverage data collection.
Test configurations for C++test have the following options:
- Report Google Test Results: Enable this option to report Google Test execution results.
- Report Coverage Results: Enable this option to include line coverage monitoring in the results.
Test configurations for dotTEST have the following options:
- Enable unit tests: Enable this option to enable unit test execution.
- Execution engine: Choose a unit test execution engine for your testing framework (see the dotTEST documentation for currently supported frameworks).
- Report Coverage Results: Enable this option to include line coverage monitoring in the results.
Test configurations for Jtest have the following options:
- Report Unit Test Results: Enable this option to report unit test execution results.
- Report Coverage Results: Enable this option to include line coverage monitoring in the results.
Static Analysis Settings Tab
Click the Static Analysis Settings tab to enable/disable static and flow analysis. The available options may vary depending on the code analysis tool. See the documentation for your tool for additional details.
Click Save to preserve any changes you make on this tab.
Advanced Settings
Expand the Advanced Settings section to enable the following options:
- Set an upper limit on the number of violations that can be reported for each rule.
- Enable/disable suppressions configured on the engine host.
- Enable Skip global analysis to prevent the collection and use of global data (Jtest only).
Flow Analysis Advanced Settings
Expand the Flow Analysis Advanced Settings section to configure settings related to performance, reporting verbosity, null-checking method parameterization, and resources checked.
Performance Settings
Expand this section to access options related to depth of analysis and machine performance. By default, flow analysis performs a complete analysis of the scope, which can take considerable time when running on large code bases.
You can configure the following options:
| Incremental analysis | Enable Enable incremental analysis to run flow analysis in incremental mode. Incremental mode reduces the time required to run analysis during nightly runs on a single code base that changes from day to day. Enable Compact incremental caches and specify how frequently unnecessary data that may have been cached is removed. This option is available for C++test only. |
|---|---|
| Depth of analysis | Choose the depth of flow analysis. A deeper setting results in more findings but may results in slower analysis and greater memory consumption. |
| Strategy for timeouts | Configure the timeout settings for flow analysis. Enable time and specify how many seconds flow analysis should wait before timing out when analyzing a single point in the code. Enable instructions and specify the maximum number of flow analysis instructions allowed when analyzing a single point in the code. Enable off to disable timeouts. |
| Enables swapping of analysis data to disk | Enable this option to allow the flow analysis tool to write the data necessary for analysis to disk. This prevents flow analysis from consuming all available memory when analyzing a large project in which the data represents a semantic model of the analyzed source code. |
Verbosity Settings
Expand this section to access options related to how much detail is included in the report.
The following options are available:
| Do not report violations when cause cannot be shown | Enable this option if you want to exclude violations that lack a cause from being reported. Complete paths from the cause to the point of violation are reported if this option is enabled, but violation causes are not reported for paths that have multiple causes. |
|---|---|
| Do not report more than one violation per point | Enable this option to restrict the number reported violations when the cause or point of violation is shared. |
| Do Not report violations whose paths pass via inline assembly code | Enable this option to report violations whose paths are passed with inline assembly code instructions. C/C++test only. |
| Report problems with building analysis data | Enable this option to report a set up problem if flow analysis encounters a problem while building analysis data. |
Null-Checking Methods Settings
Expand the Null-checking methods section to specify the expected return value when a null parameter is passed to a method. This reduces false positives and excessive paths that would normally be built when the return value of a null variable is unknown. These settings are not available for C/C++test.
Click the add icon (+) to add a new parameterization. Click the delete icon (x) to remove parameterizations.
Terminators Settings
Expand the Terminators section to define functions that terminate application execution. These settings are available for C/C++test only.
Click the add icon (+) to add a new terminating function API.
Configure the terminator in the fields provided. See the C/C++test documentation for details.
Multi-Threading Settings
Expand the Multi-threading section to define functions for synchronization between threads and to activate/deactivate the multi-threading functions already listed. The options specified here affect the rules from the BD.TRS (Threads and Synchronization) category. These settings are available for C/C++test only.
Click the add icon (+) to add a new function.
Specify a name and configure the function. See the C/C++test documentation for details.
Resources Settings
These settings allow you to define which resources should be checked by the resources rules (BD.RES category). These rules verify the correct usage of all resources that are defined and enabled in this tab.
Click the add icon (+) to add a new resource.
Specify a name and configure the resource.
Extended Scope of Analysis Settings
When performing code analysis, Flow Analysis processes definitions of functions that are defined in source and header files under test. Functions that are defined in header files outside the testing scope are not analyzed, and Flow Analysis is not aware of their semantics. If Flow Analysis requires information about function definitions that are defined in header files outside the testing scope. These settings are available for C/C++test only.
You can configure the following settings:
| External files to analyze | Specifies absolute paths to additional header files to be analyzed by Flow Analysis. Use wildcards to specify the pattern. |
|---|---|
| External functions to analyze | Specifies additional functions to be analyzed by Flow Analysis. Complete the table with the following information:
|
Compiler-Specific Settings
These settings allow you to define advanced compiler-specific arguments. These settings are available for C/C++test only.
Inversion of Control Framework Settings
Expand the Inversion of Control Framework Settings section to specify annotations used for injecting/initialization values during runtime. Enter a comma-separated list of fully qualified names to use as annotations. These settings are available for Jtest only.
General Tab
Click on the General tab to view and edit metadata associated with the configuration. Click Save to preserve any changes you make on this tab.
The following settings and information are available:
| Configuration Name | You can rename the test configuration. |
|---|---|
| Folder | Enter a name in the Folder field to change the location of the test configuration. Entering the name of an existing folder moves the test configuration to that location. If the name you specify doesn't exist, a new folder will be created, and the test configuration moved into it. You can also nest folders by placing a forward slash (/) between folder names.
|
| Access | Choose test configuration accessibility. See About Test Configuration Access. |
| Tags | Add or remove tags, which searchable terms attached to the configuration. |
| Configuration URL | View the configuration file URL that is consumed by the code analysis and test execution tool. This cannot be changed. |
| Last Modified | View when the test configuration was added or updated. |
| Author | Add an author. The author may be resource for team members who can provide guidance. |
| Approver | Add an approver. The approver may be someone who can provide additional information about the test configuration or serve as a quality gate. |
| Description | Add a description to provide additional information about the configuration. Descriptions may help team members understand the goals associated with the test configuration. |
