Introduction

dotTEST allows you to monitor and collect coverage data from managed code during manual or automated functional tests performed on a standalone or web application.

In typical workflows, dotTEST collects coverage for web applications deployed on IIS server. You can collect coverage data from managed code during tests performed on a running web application that is deployed on IIS server. .NET web applications are supported. Alternatively, the application can be run as a desktop application (for example, using dotnet.exe or application executable if it is a .NET application).

Coverage can be collected using a dedicated dotTEST application coverage UI or the command line. You can send coverage data and test results to DTP, which merges and correlates the data. The application coverage information can be displayed in the DTP Coverage Explorer, which provides insights about how well the application is tested, as well as the quality of your tests. For details, see the "Coverage Explorer" chapter in the DTP User Guide.

Process Overview

dotTEST ships with a component called the coverage agent, which makes it possible to collect coverage for applications using REST client API for coverage engine (agent_client.exe). The tool facilitates collecting coverage information from managed code during execution of standalone and web applications. Running agent_client.exe launches a UI. Alternatively, you can provide the information with the dedicated command line options.

dotTEST enables you to generate a local coverage report and upload the results to DTP.

.NET Web Applications

You can leverage the capabilities of the agent_client.exe tool to collect coverage for .NET web applications by providing the entry point of the application under test and the path to dotnet.exe.

The dotTEST coverage agent is attached to the application under test (AUT) and monitors the code being executed as the AUT runs. When the coverage agent is attached to the AUT, a REST API is exposed that enables you to mark the beginning and end of each test and test session. During test execution, interactions with the coverage agent and AUT are written to a dynamic coverage data file, which contains markers that specify which lines of code were touched.

Metadata about the lines of code that can be covered (static coverage data) is collected either by running a dedicated test configuration or by scanning the application assemblies. During test execution, interactions with the coverage agent are written to dynamic coverage data files, which contains markers that specify which lines of code were touched.

Dynamic coverage is not reported for files other than .cs or .vb.

dotTEST processes the dynamic coverage and static coverage data. A coverage.xml file, which contains the coverage information, is produced and sent to DTP. When DTP receives the coverage data, it is loaded into a coverage image, which is a special tag that enables you to aggregate coverage data from runs with the same build ID. The coverage image enables you to associate coverage information with specific tests.

dotTEST can also collect application coverage which includes only runtime coverage and general information about the classes that have been executed without any details about the source code structure other than the lines that have been covered. A simplified report is then sent and appended to existing coverage data on DTP. The coverage data can be viewed if information about class structure (static coverage data) is already available on DTP.

Test results are also sent to DTP from the tool executing the tests (that is, SOAtest, tests executed by dotTEST, manual tests, etc.) in a report.xml file. If the build IDs for the coverage data (coverage.xml) file and the report match, DTP is able to correlate the data and display the coverage information.

You can use either dottestcov or the dottestcli to create a coverage report and upload the data to DTP. dottesctcov is a dedicated tool for coverage and offers more options in terms of collecting, merging and creating coverage reports, see Creating a Coverage Report and Uploading the Data to DTP. The dottestcov.bat file is located in the <INSTALL_DIR>\integration\coverage\dottestcov directory.

Agent_client.exe and dottestcov are standalone tools that can be copied out from dotTEST installation directory and used independently. Therefore, you can easily integrate them within your testing flow. For details about the agent client command line options, see Command Line Options for Agent Client. For details about dottestcov command line options, see Command Line Options for dottestcov.

Prerequisites for Using the Coverage Agent

Ensure that the Visual C++ Redistributable Packages that are shipped with dotTEST are installed on the machine where the monitored application will be run. They are automatically installed when you install dotTEST with the wizard (see Installation). If you install dotTEST from a ZIP distribution, or if you are going to collect coverage on another machine, install the packages manually by running the executables located in the <INSTALL_DIR>\bin\prerequisites directory.

The monitored application can be installed on the same machine where dotTEST is installed, or on another machine.

If you use a source control system, ensure that your source control settings are properly configured; see Source Control Settings.

Additionally, for web applications deployed on IIS server:

The LoadUserProfile option to be set to true in the ISS Management Console.
Internet Information Services (IIS) version 7.5 or higher is required.

Prerequisites for Using the dottestcov Tool

The dottestcov tool can be run on the following operating systems:

Linux with .NET Runtime 9.0
Windows versions listed in Operating Systems.

The dottestcov tool requires Java 11 or higher to be installed on your machine. Both Oracle Java SE and OpenJDK are supported. Other free and open source implementations may cause issues with the proper functioning of the coverage tool. It is recommended to set JAVA_HOME and add it to the system PATH.

Also, ensure the proper .NET framework is installed on your machine:

.NET Runtime 9.0 (for dottestcov on Linux)
.NET Framework 4.7.2 or .NET Runtime 9.0 (for dottestcov on Windows)

Workflow for Coverage Collection Using UI

Collecting Application Coverage for IIS Web Applications

Follow these steps to collect coverage from all the web applications residing on the configured IIS server:

To launch the dotTEST application coverage UI, run the agent client in the console using the following command:
```
agent_client.exe
```

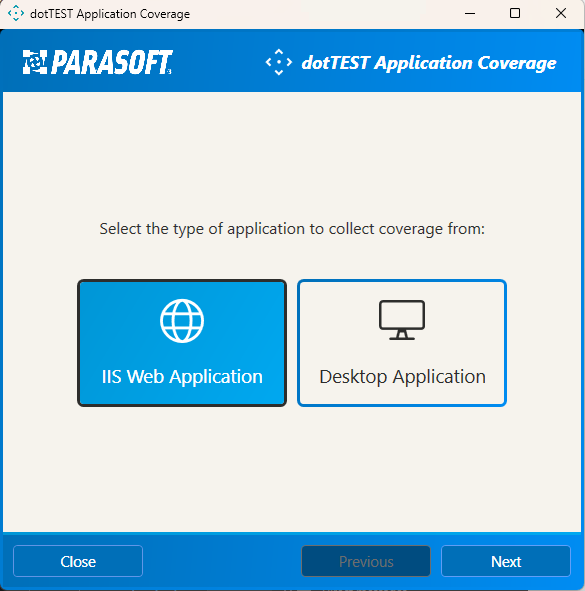

Choose IIS Web Application, and click Next.
(Optional) Configure the following settings:
- Application URL - Specifies the URL of an application which you will be able to run from the application coverage UI.
- Advanced settings:
  - Enable simultaneous collection of coverage for multiple users - Enables collecting coverage information for multiple users.
  - Coverage output directory - Specifies the path to the coverage data output directory.
  - Coverage scope file - Specifies the path to the coverage scope configuration file. It is required if the scope is other than the default.
  - Agent REST API port - Specifies the custom port number to use when starting the coverage agent if the default port is unavailable.
  - Agent connection timeout (milliseconds) - Specifies the timeout for a connection with the coverage agent. The default value is 1500 ms.
    If you provide 0 or a negative value, the connection attempt will not timeout, which may lead to a considerable slowdown or cause the tool to hang indefinitely.
  - Data flushing interval (milliseconds) - Specifies the frequency at which collected coverage data is written to disk.
  - Maximum number of coverable lines - Specifies a limit for the number of lines that can be covered.
  - Enable SSL for connecting to the agent - Enables connecting via HTTPS.
    - Skip SSL certificate validation - Enables using a self-signed SSL certificate.
    - Certificate path - Specifies the path to a PFX file that stores the SSL certificate.
    - Certificate hash - Specifies the hash of the SSL certificate for the port that is used by the coverage agent.
    - Certificate password - Specifies the password for the SSL certificate stored in a PFX file.

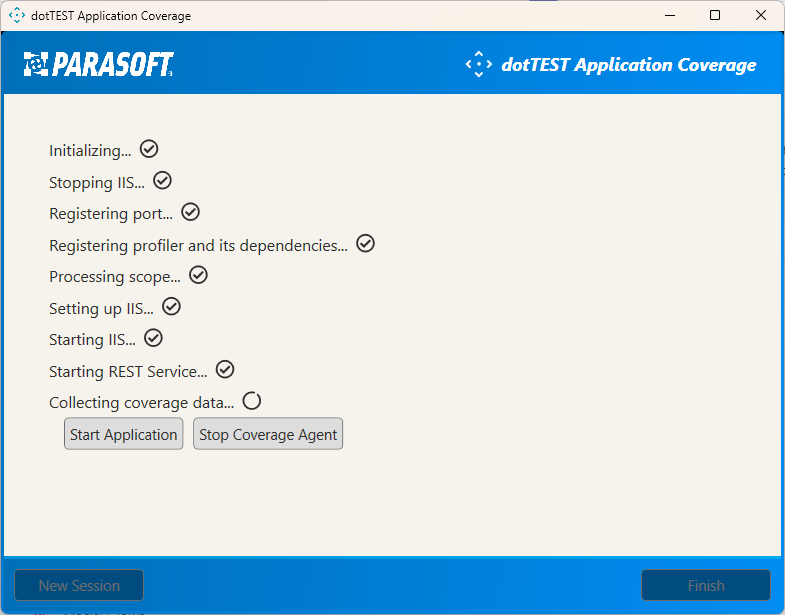

Click Next. Coverage will be collected for all applications residing on the IIS server.
(Optional): Perform tests on the specified application and view the coverage API. Click Start Application to run the specified application and perform tests on it.
Click Stop Coverage Agent to finish collecting coverage from all applications.
Click Finish to close the application coverage UI, or New Session to configure a new coverage collection session.

Collecting Application Coverage for Standalone and Web Applications

Follow these steps to collect coverage for a specified standalone or web application:

To launch the dotTEST application coverage UI, run the agent client in the console using the following command:
```
agent_client.exe
```
Choose Desktop Application, and click Next.
Configure the following settings:
- Full path to the tested application - Specifies the full path to the tested application for which coverage will be collected. You will be able to run this application from the application coverage UI.
- Application command-line arguments - Specifies the application command line arguments.
- Application working directory - Specifies the path to the working directory.
- (Optional) Advanced settings:
  - Enable simultaneous collection of coverage for multiple users - Enables collecting coverage information for multiple users.
  - Coverage output directory - Specifies the path to the coverage data output directory.
  - Coverage scope file - Specifies the path to the coverage scope configuration file. It is required if the scope is other than the default.
  - Agent REST API port - Specifies the custom port number to use when starting the coverage agent if the default port is unavailable.
  - Agent connection timeout (milliseconds) - Specifies the timeout for a connection with the coverage agent. The default value is 1500 ms.
    If you provide 0 or a negative value, the connection attempt will not timeout, which may lead to a considerable slowdown or cause the tool to hang indefinitely.
  - Data flushing interval (milliseconds) - Specifies the frequency at which collected coverage data is written to disk.
  - Maximum number of coverable lines - Specifies a limit for the number of lines that can be covered.
  - Enable SSL for connecting to the agent - Enables connecting via HTTPS.
    - Skip SSL certificate validation - Enables using a self-signed SSL certificate.
    - Certificate path - Specifies the path to a PFX file that stores the SSL certificate.
    - Certificate hash - Specifies the hash of the SSL certificate for the port that is used by the coverage agent.
    - Certificate password - Specifies the password for the SSL certificate stored in a PFX file.
Click Next. The specified application will be run and coverage will be collected. Perform tests on the application.
Click Stop Coverage Agent to finish collecting coverage from the application.
Click Finish to close the application coverage UI, or New Session to configure a new coverage collection session.

Workflow for Coverage Collection Using Command Line

The following steps are required to collect coverage using CLI:

(Optional) Generate the static coverage file with source code information. The static coverage file contains metadata about user classes, methods, and lines; see Generating the Static Coverage File with Source Code Information.
Attach the coverage agent to the AUT; see Attaching the Coverage Agent to the AUT.
Collect coverage using CLI or execute tests to collect coverage; see Collecting Coverage Using CLI or Executing Tests to Collect Runtime Coverage.
Stop runtime coverage collection; see Stopping Runtime Coverage Data Collection.

Generating the Static Coverage File with Source Code Information

Generating the static coverage file is required if you want create to a report containing merged static coverage (including source code information) and runtime coverage.

Generate the static coverage file by running the following test configuration on the solution:

dottestcli.exe -config "builtin://Collect Static Coverage" -solution SOLUTION_PATH

The dottestcli console output indicates where the static coverage data is saved, for example:

Saving static coverage information into: 'C:\Users\[USER]\Documents\Parasoft\dotTEST\Coverage\Static\[FILE].xml

This static coverage file can be used with dottestcli and dottestcov to be merged with runtime coverage data and sent to DTP.

Generating the Static Coverage File without Source Code Information

Generate the static coverage file by running the following command:

dottestcov.bat -app [dir]

Where -app specifies the path to the Application Under Test directory.

Attaching the Coverage Agent to the AUT

Copy the <INSTALLATION_DIR>\integration\coverage\agent directory to the machine where IIS is installed and the web application is deployed.
Deploying the agent in the home directory (%USERPROFILE% directory) is not recommended, as it may prevent coverage collection from web-based applications.
Run a console as an Administrator.
Invoke the Agent Client tool on this machine to enable runtime coverage collection inside IIS:
```
agent_client.exe
```
You may need to configure the Agent Client with additional options, see Command Line Options for Agent Client.
The Agent Client initializes the environment for the web server (IIS) and behaves like a service, enabling you to execute tests and collect coverage. The service is ready and waiting for commands as long as the following message is printed to the output:
```
Write 'exit' and hit Enter to close agent_client
```
A test session and test can be started even if the tested website or application has not been loaded yet.
Ensure that port 8050 (default port for the coverage agent) allows HTTP traffic in firewall settings on this machine. You can change the coverage agent port number if the default port is unavailable.
Open the website or application.
Go to the following address to check the status of the coverage agent: http://host:8050/status
You should receive the following response:
```
{"session":null,"test":null}
```

Connecting with the Coverage Agent via HTTPS

By default, the coverage agent is available via the HTTP protocol. To connect via HTTPS, you need to bind an SSL certificate to the port used by the coverage agent. This can be achieved in one of the following ways:

By adding your SSL certificate to a storage accessible from the Netsh.exe tool and passing the hash of the certificate and the port number to agent_client.exe:
```
agent_client.exe -port 8050 -useSsl -certificateHash <SSL certificate hash>
```
By passing the path and password to an SSL certificate stored in a .pfx file and the port number to agent_client.exe:
```
agent_client.exe -port 8050 -useSsl -certificatePath <path to PFX> -certificatePassword <password>
```
By configuring a port with an SSL certificate and the appid of the Agent Client for the Netsh.exe tool. The Agent Client has the following ID:
```
{ed344e08-fab7-4dfb-9d07-68f2c2c9e373}
```
When the SSL certificate is configured in the Netsh.exe tool, you can connect via HTTPS by launching the Agent Client with the -port and -useSsl switches:
```
agent_client.exe -port 8050 -useSsl
```

To use a self-signed certificate, you must add the -skipvalidation option.

You can use an SSL certificate in the in PFX or PKCS12 format.

Removing an SSL Certificate

By default, the Agent Client automatically handles certificates configured for the coverage agent. To manually remove a certificate, launch the Certmgr.exe tool and remove the certificate stored in Personal > Certificates.

If you manually unregister the coverage service port using the Agent Client with the -unregister switch, you need to add the -useSsl and -removeCertificate switches to remove the SLL certificate:

agent_client.exe -unregister -port 8050 -useSsl -removeCertificate

This will delete the SSL certificate from the port number. You can now manually remove the certificate from the storage.

Collecting Coverage Using CLI

To collect coverage using CLI, run agent_client.exe with the dedicated command line options to specify the information necessary for collecting application coverage.

For IIS applications:

agent_client.exe -port 8050

For desktop applications:

agent_client.exe -app [path] -workingDir [path] -appArgs [arguments]

Collecting Coverage from Multiple Users

You can collect coverage information for multiple users that are simultaneously accessing the same web application server. This requires launching the Agent Client with the -multiuser switch:

agent_client.exe -multiuser

Changing Agent Client Idle Timeouts

By default, the Agent Client application pool processes are recycled after 20 minutes of idle time, which can have negative consequences on a test session. You can prevent this behavior by changing the default value so that people working with the application do not experience unexpected stops and restarts during a test session.

Start the Internet Information Services (IIS) Manager.
Open the Application Pools node.
Choose the pool for your web application.
Click Advanced Settings in the Actions panel.
In Process Model section, change the Idle Time-out (minutes) setting to a value better-suited to your testing practices.

Executing Tests to Collect Runtime Coverage

To collect runtime coverage:

You can use SOAtest to run functional tests. When tests are being performed SOAtest will collect runtime coverage, and upload the data to DTP. Refer to the SOAtest user guide for details about performing test sessions.
You can execute tests on an application with the attached coverage agent. Coverage will be collected in the runtime coverage directory. Next, you need to merge the runtime coverage with static coverage and upload the merged data to DTP. For details, see Creating a Coverage Report and Uploading the Data to DTP.

Stopping Runtime Coverage Data Collection

You can stop the process of collecting runtime coverage data in one of the following ways:

Write exit in the open console when the following message will be printed to the output to stop the agent client:
```
Write 'exit' and hit Enter to close agent_client
```
Send a request to the service by entering the following URL in the browser: http://host:port/shutdown

Agent client is stopped only when all test sessions are finished. Application coverage will no longer be collected when the service stops, so it is important that the agent client runs continuously while performing tests to collect coverage.

If any errors occur when the agent client exits, which prevent the clean-up of the Web Server environment, then execute the agent client with the -uninitialize option to restore the original Web Server environment and settings:

agent_client.exe -uninitialize

Known Limitations

You can download coverage information that was collected in a test session. Coverage data collected when no test session was active cannot be downloaded.
If multiple users are simultaneously accessing the same web application, the coverage data they collect may be mixed. To ensure that coverage is properly associated with individual users, the multiuser mode must be enabled (see Collecting Coverage from Multiple Users).
The HTTP or HTTPS protocols are required to enable the multiuser mode, as the user-specific information must be provided within the HTTP header.
In the multiuser mode, collecting coverage for WCF-based applications requires that they have the ASP.NET compatibility mode enabled.
In the multiuser mode, the "default" user (the user who has not specified their ID) may collect extra coverage information from other users who are accessing the same web application.
Coverage data collected web initialization is not assigned to a specific user, but to the "default" user.
The application coverage scope file cannot be used for WebSite projects as they may get recompiled by IIS server and change the name of the target assembly. Scope files can be safely used for Web Applications.

Uploading Test Results to DTP

Follow these steps to upload the test results from the executed tests to DTP:

Go to Report Center in the DTP interface.
Click the gear icon and choose Report Center Settings > Additional Settings > Report Center Administration > Tools > Data Collector Upload Form (requires admin permissions).
Click Choose File and browse for the report.xml file.
Click the Upload button to upload the file to DTP.

If you use SOAtest, test results are automatically sent to DTP during test execution. See the Application Coverage section in the SOAtest user guide at https://docs.parasoft.com.

Creating a Coverage Report and Uploading the Data to DTP

You can use either the dottestcov or the dottestcli command to create a coverage report and upload the data to DTP. For details about dottestcov command line options, see Command Line Options for dottestcov.

There are 3 types of coverage report that can be generated:

A static and runtime coverage report - a report containing merged static coverage (including source code information) and runtime coverage. To create this report, run dottestcli with the -runtimeCoverage and -staticCoverage switches or dottestcov with the -runtime and -static switches.
An application coverage report - a static coverage report created by scanning application assemblies and runtime coverage. To create this report, run dottestcov with the -app and -runtime switches.
A runtime coverage report - a simplified application coverage report including only runtime coverage and general information about the classes that have been executed without any details about the class structure (only the lines that have been covered). The report can be viewed if there is already existing application or static coverage-based data on DTP. To create this report, run dottestcov with the -runtime switch.

Follow the procedure below to create a coverage report and upload the data to DTP:

Ensure that dottestcli/dottestcov is properly configured, including DTP, scope, and authorship settings. See Connecting to DTP, Sending Results and Publishing Source Code to DTP, Configuration.
Configure the following settings in the .properties file in order to properly merge coverage data:
- report.coverage.images - specifies a set of tags that are used to create coverage images in DTP. A coverage image is a unique identifier for aggregating coverage data from runs with the same build ID. DTP supports up to three coverage images per report.
- session.tag - specifies a unique identifier for the test run and is used to distinguish different runs on the same build.
- build.id - specifies a build identifier used to label results. It may be unique for each build, but it may also label several test sessions executed during a specified build.
- report.coverage.limit - (optional) specifies the lower coverage threshold. Coverage results lower than this value are highlighted in the report (the default value is 40).
If you want to use dottestcli, copy the runtime coverage and static coverage files to the same machine and run dottestcli with the following switches:
- -runtimeCoverage - specifies the path to runtime coverage data collected using the coverage agent. You can provide a path to an individual .data file with coverage information from one testing session, or a path to a folder that contains many .data files from multiple testing sessions.
- -staticCoverage - specifies the path to the static coverage file (see Generating the Static Coverage File with Source Code Information).
- -publish - sends the merged coverage to DTP.
```
dottestcli.exe -runtimeCoverage [path] -staticCoverage [path] -publish
```
  This ensures that dotTEST has access to the runtime coverage data generated during test execution, as well as the static coverage data, which is required to fill the coverage.xml file with runtime coverage data.
If you want to use dottestcov, run dottestcov with the following switches:
- -app - specifies the path to the Application Under Test directory or archive file.
- -runtime - specifies the path to runtime coverage data collected using the coverage agent. You can provide a path to an individual .data file with coverage information from one testing session, or a path to a folder that contains many .data files from multiple testing sessions.
- -static - specifies the path to the static coverage file (see Generating the Static Coverage File with Source Code Information).
- -publish - sends the merged coverage to DTP.
  Example 1: Generating a report based on runtime data and static coverage from the monitor
```
dottestcov.bat -static [path to static_coverage.xml file] -runtime [path/dir]
-publish -settings [path to .properties]
```
  Example 2: Generating a report based on runtime data and coverage from the application binaries
```
dottestcov.bat -app [dir] -runtime [path/dir] -publish -settings [path to .properties]
```
  Example 3: Generating a report based on runtime data
```
dottestcov.bat -runtime [path/dir] -publish -settings [path to .properties]
```
If you want to merge previously generated runtime coverage reports, run the dottestcov merge command. To merge two or more reports, run
```
dottestcov.bat merge -coverage <REPORT_FILE> -coverage <REPORT_FILE>
[-coverage <REPORT_FILE>] [-report <REPORT_DIR>] [-excludeunmatchedruntime]
```
- -coverage <REPORT_FILE> - specifies one or more input coverage reports to merge and publish to DTP.
- -report <REPORT_DIR> - (optional) generates an xml coverage report to the given folder. By default the report is stored to the .coverage/reports folder.

If you use SOAtest, static and runtime coverage data are merged and sent to DTP during test execution. See the "Application Coverage" section in the SOAtest User Guide.

Customizing the Coverage Scope Using dottestcli

By default, coverage is measured for the entire application. To narrow down the scope of collecting coverage, provide paths to the selected parts of the application with the -solution, -resource, -include, and/or -exclude options (see Configuring the Test Scope for details) when generating static coverage. As a result, dotTEST will generate a scope configuration file that would include the customized scope for collecting static coverage.

You do not need to modify the content of the scope configuration file. However, if you collect coverage for large applications, you may want to additionally fine-tune the scope of collecting runtime coverage (that is, coverage collected while interacting with the application under test) to optimize performance. To customize collecting runtime coverage, open the scope.instumentation.txt file and remove the the assemblies for which you do not want to collect coverage data from the list of assemblies.

It is not possible to use the application coverage scope file for web projects that are compiled on IIS. This is because the target assemblies of IIS compilations are named unpredictably. Scope files can be used safely when the assembly name loaded by IIS can be predetermined before coverage collection starts.

To narrow down the scope of collecting coverage:

Add the paths to resources to your command line (see Generating the Static Coverage File with Source Code Information), for example:

dottestcli.exe -config "builtin://Collect Static Coverage"
-solution "C:\Devel\FooSolution\FooSolution.sln"
-resource "FooSolution/QuxProject"
-include "C:\Devel\FooSolution\src\QuxProject\**\*.cs"
-exclude "C:\Devel\FooSolution\src\QuxProject\**\tests\**\*.cs"

When static coverage is generated, the scope information is stored in a scope configuration file. The output from the console indicates the location of the scope configuration file, for example:

Saving static coverage scope configuration into: 'C:\Users\[USER]\Documents\Parasoft\dotTEST\Coverage\Static\scope.instrumentation.txt'

Pass the path to the scope configuration file to the Agent Client tool (see Attaching the Coverage Agent to the AUT) with the -scope option, for example:
```
agent_client.exe -scope 'C:\Users\[USER]\Documents\Parasoft\dotTEST\Coverage\Static\scope.instrumentation.txt'
```

Customizing the Coverage Scope Using dottestcov

By default, coverage is measured for the entire application. To narrow down the scope of collecting coverage, execute:

dottestcov.bat
-include "MyAssembly.dll/*"
-exclude "MyAssembly.dll/packageA.*"
-app [dir] -runtime [path/dir] -publish -settings [path to .properties]

Reviewing Coverage in DTP

You can use the Coverage Explorer in DTP to review the application coverage achieved during test execution. For details on viewing coverage information, see the DTP User Guide.

Page tree

Application Coverage
