To import a Keil uVision project, you need the original uVision project configured to generate a .bat build file. To do this:
- Open the Keil uVision project.

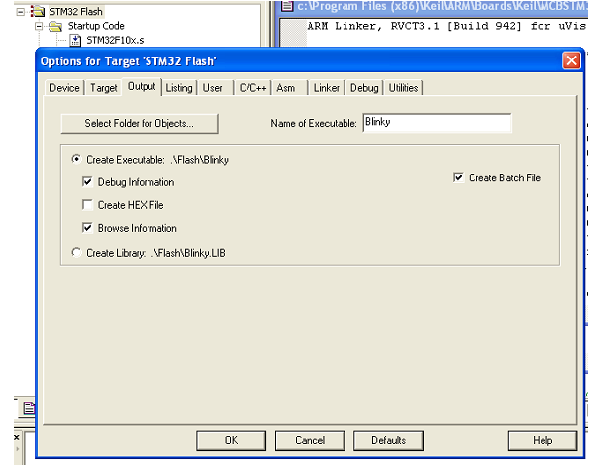

- Go to Options for target and open the Output tab.
- Check/activate the Create Batch File option.
- Rebuild the project.
Once a .bat build file is generated, import the project into C++test as follows:
- Choose File> New> Project, select Import Keil uVision projects, then click Next.
- Type (or browse to) the path to the appropriate project/workspace file or directory.
- Click the Refresh, select the projects to import, then Next.
- Set the import destination, project contents, and build target to be imported, then click Finish.
- If you select a different build target than the one that you generated a build bat file for, then the import wizard will not let you to import the project.
The imported project will have a suitable compiler configuration preselected.
A Keil uVision project can also be imported in the command-line mode by using the following option:
-uv <.uv2 or .uvproj file location>
If you want to change the default import settings, you can specify new ones in a plain text options file. This is described in Local Settings (Options) Files.
In order to successfully analyze the source code, C++test needs to be started with the environment prepared for uVision compilation tools. The RVCT compiler and uVision debugger (Uv3.exe or Uv4.exe) locations have to be added to the $PATH variable before launching C++test GUI/CLI. The recommended practice is to use a uVision3-generated .bat build file for extracting the environment settings. |
Importing Keil uVision 4.0 Projects
To test code that compiles with the Keil 7.0 for C166 compiler, you must your Keil uVision 4.0 project
- Navigate to the project directory and run the following command:
[path to]\cpptesttrace.exe --cpptesttraceProjectName=[project name] --cpptesttraceOutputFile=[project name].bdf --cpptesttraceQuoteCmdLineMode=sq "[path to]\Uv4.EXE" -r [project file]
- .Uv2 and .uvproj extensions are supported--the GUI will automatically convert .Uv2 projects
- cpptesttrace.exe is located within [INSTALL]\engine\bin\cpptesttrace.exe
- Default location of Keil Uv4.EXE gui is: "C:\Keil\UV4\Uv4.EXE"
- [project name] is a unique identifier for this project when it's imported to C++test
- Import the newly created .bdf using the C++test GUI
Fixing File Extensions or Keil C166 IDE-generated Source Files
The file extension case may change for some source files generated with the Keil C166 IDE. This will cause source file to be skipped during analysis.
- In C++test, right-click on your project and choose Properties> C/C++ General> File Types
- Enable the "Use project setting" option
- Click New and enter *.C. in the Pattern
- Choose C Source File from the Type drop-down menu and click OK
- Click New and enter *.CPP in the Pattern and choose C++ Source File from the Type drop-down menu
- Click OK
