About the Plugin

The Rabbit MQ Message Listener is a custom message listener extension for Parasoft Virtualize. The listener connects to a Rabbit MQ broker and consumes messages on a specified queue. Depending on the mode of operation (passthrough or virtualize), the messages are forwarded to the real backend system or forwarded to Virtualize, respectively. This listener assumes the publisher uses the Reply To field to define the queue/routing key that will be used when sending the response. The listener also has options to enable the creation of the reply to queue on the fly or to use a predefined reply-to queue.

Implementation

The Rabbit MQ Message Listener is implemented as com.parasoft.virtualize.listener.rabbitmq-<version>.jar, which depends upon Rabbit MQ AMQP Client 5.2.0 (amqp-client-5.2.0.jar). This dependency is packaged with the distribution.

Installation

This tool can be installed from the UI or the command line.

UI Installation

Choose Parasoft> Preferences.
In the System Properties preferences page, click Add JARs.
In the file chooser that opens, select com.parasoft.virtualize.listener.rabbitmq-<version>.jar. Once this jar file is added to the classpath, all of the required dependencies will be loaded.
Restart Virtualize.

Command Line Installation

Add the com.parasoft.virtualize.listener.rabbitmq-<version>.jar file to the system.properties.classpath property in your localsettings properties file.

For example:

system.properties.classpath=<path to jar>/com.parasoft.virtualize.listener.rabbitmq-1.0.1.jar

Once the classpath is modified, all of the required dependencies will be loaded.

Usage

Use of this listener requires additional configuration on the Rabbit MQ server.

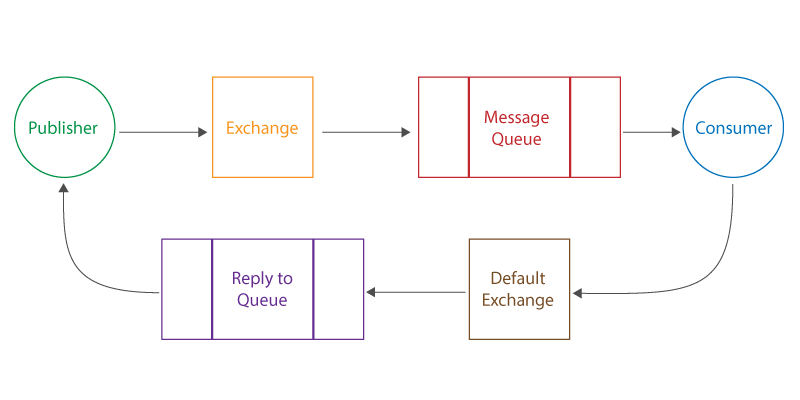

Standard Configuration

Above is a standard Rabbit MQ configuration. The Publisher publishes a message through an Exchange. The exchange then routes the message to the proper Message Queue where the Consumer is listening. The consumer then handles the message and passes a response through the default exchange onto the Reply To Queue defined by the publisher. In order to include Virtualize in the configuration the exchange and message queue should be duplicated in the same Virtual Host with the same exact configuration (except for name).

Once the additional exchange and message queue have been configured either the publisher will have to be pointed at the new exchange, or the consumer will have to be pointed at the new message queue so that Virtualize can act as the man-in-the-middle and forward messages to the consumer’s message queue or forward the messages to a Virtualize Asset for a virtual response and respond directly to the publisher.

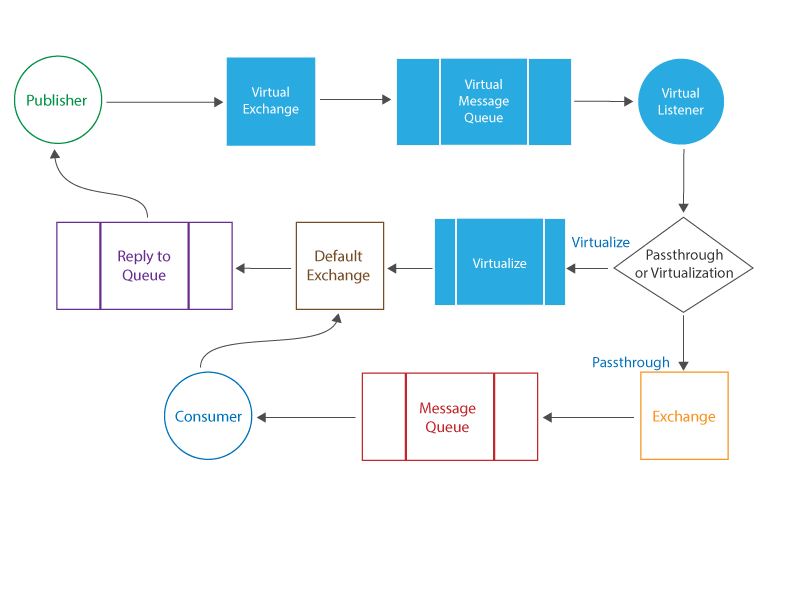

Publisher-side Virtualization Configuration

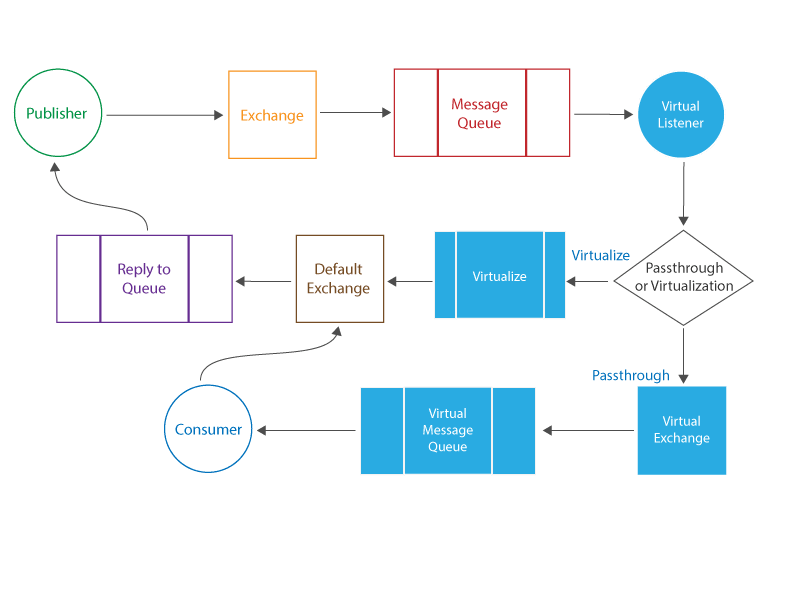

Consumer-side Virtualization Configuration

After the additional components are configured on the server and the listener has been installed in Virtualize, it can be selected and configured in the Virtual Asset configuration panel.

From the Virtualize Server view, select the virtual asset you want to use fpr the custom message listener, then navigate to Transports> Custom in the Virtual Asset Deployment Settings. If multiple listeners are installed, use the Select Implementation drop-down menu to select com.parasoft.virtualize.listener.rabbitmq.RabbitMQListener.

You can configure the following settings.

Configuring Connection Settings

Option	Description
Hostname	Defines the hostname of the Rabbit MQ server. If empty, the listener will not start.
Port	Defines the port of the Rabbit MQ server. If this field is empty, the default Rabbit MQ port will be used.
Use SSL	Set to `true` to use SSL when connecting to the Rabbit MQ Server. Default is `false`.
Username	Defines the Rabbit MQ username.
Password	Defines the Rabbit MQ password.
Virtual Host Name	Defines the Rabbit MQ Virtual Host to connect to.
Automatic Connection Recovery	Set to `true` if the listener should attempt to automatically recover from connection failures. Default is `true`.
Topology Recovery	Set to `true` if the listener should attempt to automatically recover from topological failures (i.e., failures with exchanges or queues). Default is `true`.

Configuring Listener Settings

Option	Description
Listener Mode	You can specify `passthrough` or `virtualize` mode. Passthrough mode forwards the messages on the Listen Queue to the exchange in Forward Exchange Name. Virtualize mode forwards the messages on the Listen Queue to Virtualize to generate a virtual response.
Listen Queue	Defines the queue that Virtualize will consume message from.
Auto Ack	Set to `true` if the listener consumer should automatically acknowledge the messages that it handles. If set to `false,` the messages will have to be acknowledged in a different manner or they will remain on the queue.
Consumer Tag	Defines the consumer tag to use when consuming from a queue.
Forward Exchange Name	Defines the exchange to use when forwarding the messages on the Listen Queue. This field is only used in Passthrough mode.

Configuring ReplyTo Settings

Option	Description
ReplyTo Exchange	Defines the exchange to use when replying. This field is only used in Virtualize mode.
Generate ReplyTo Queue	Set to `true` if the listener should generate the Reply To queue before publishing a response. This field is only used in Virtualize mode.
ReplyTo Queue Durability	Set to `true` if the Reply To queue should be durable. A durable queue is a queue that will persist a server restart. This field is only used in Virtualize mode when Generate ReplyTo Queue is `true`.
Autodelete ReplyTo Queue	Set to `true` if the Reply To Queue should be deleted automatically. An autodelete queue is deleted after all messages living on the queue have been consumed. This field is only used in Virtualize mode when Generate ReplyTo Queue is `true`.

Configuring Logging Settings

Option

Description

Log Level

Set the log level for the listener. The following values are accepted:

1 - error

2 - warn

3 - info

4 - debug

Default is 3.
